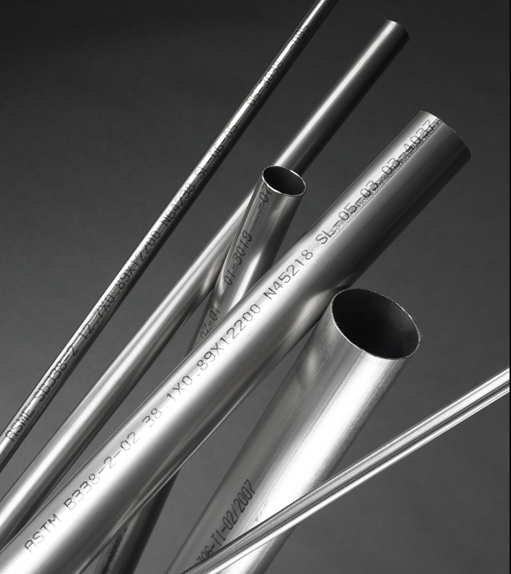

Commercial Pure Titanium Grade 1 Tube and Pipes

Titanium Alloy Grade 1 is “unalloyed” titanium offering optimum ductility and cold formability.
1.Size: Outer Diameter5mm~114mm×Wall Thickness0.5mm~10mm×Length25000mm;
2.Standard:ASMESB338;ASTM B861; ASTM B862;AMS4942;AMS4945;AMS4944;AMS4943; GB/T3625;

Products Inquiry

CompanyName * :

Email * :

Name :

Tel :

Message :

Product Details

Titanium Alloy Grade 1 is “unalloyed” titanium offering optimum ductility and cold formability. The material has high impact toughness and is readily weldable. The material is capable of deep drawing.

Standard: ASMESB338; ASTM B861; ASTM B862;AMS4942;AMS4945;AMS4944;AMS4943; GB/T3625;

Standard	Werkstoff No.	UNS
Commercial Pure Titanium Grade1	3.7025	R50250

Technical Data Sheet

Chemical Composition
Weight %	Ti	C	Fe	N	O	H
Titanium CP Grade 1	Balance	0.08	0.02	0.03	0.15	0.015

Typical Mechanical Properties (Tensile Requirements)

Material

Tensile Strength, min

Yield Strength (0.2% Offset) min or range

Elongation in 4D,min%

Reduction of Area

Min %

ksi

MPa

ksi

MPa

Titanium Grade 1

240

138

Seamless titanium Tubes and Pipes

GOOLEE titanium seamlesstubes and pipes are widely used in condensers, heat exchangers, aerospace fuel pipes, bicycles, golf carts and motorcycles, etc. Products

Welded Titanium Tube and Pipes

GOOLEE titaniumwelded tubes and pipes are widely used in condensers, heat exchangers, 1.Outer Diameter10mm~114mm×Wall Thickness0.5mm~2mm×Length25000mm; 2.Material: Titanium Grade1, 2, 12 Standar

Titanium Grade5 pipes for large outer diameter and thick wall oil and marine

Titanium Alloy Grade5 Ti-6Al-4V Ti-6Al-4V alloy is the most widely used titanium alloy of the alpha-plus-beta class,and is also the most common of all titanium alloys. The alloy is castable and is&nb

Titanium tubes for Aerospace and Airplane
